Residential Storage

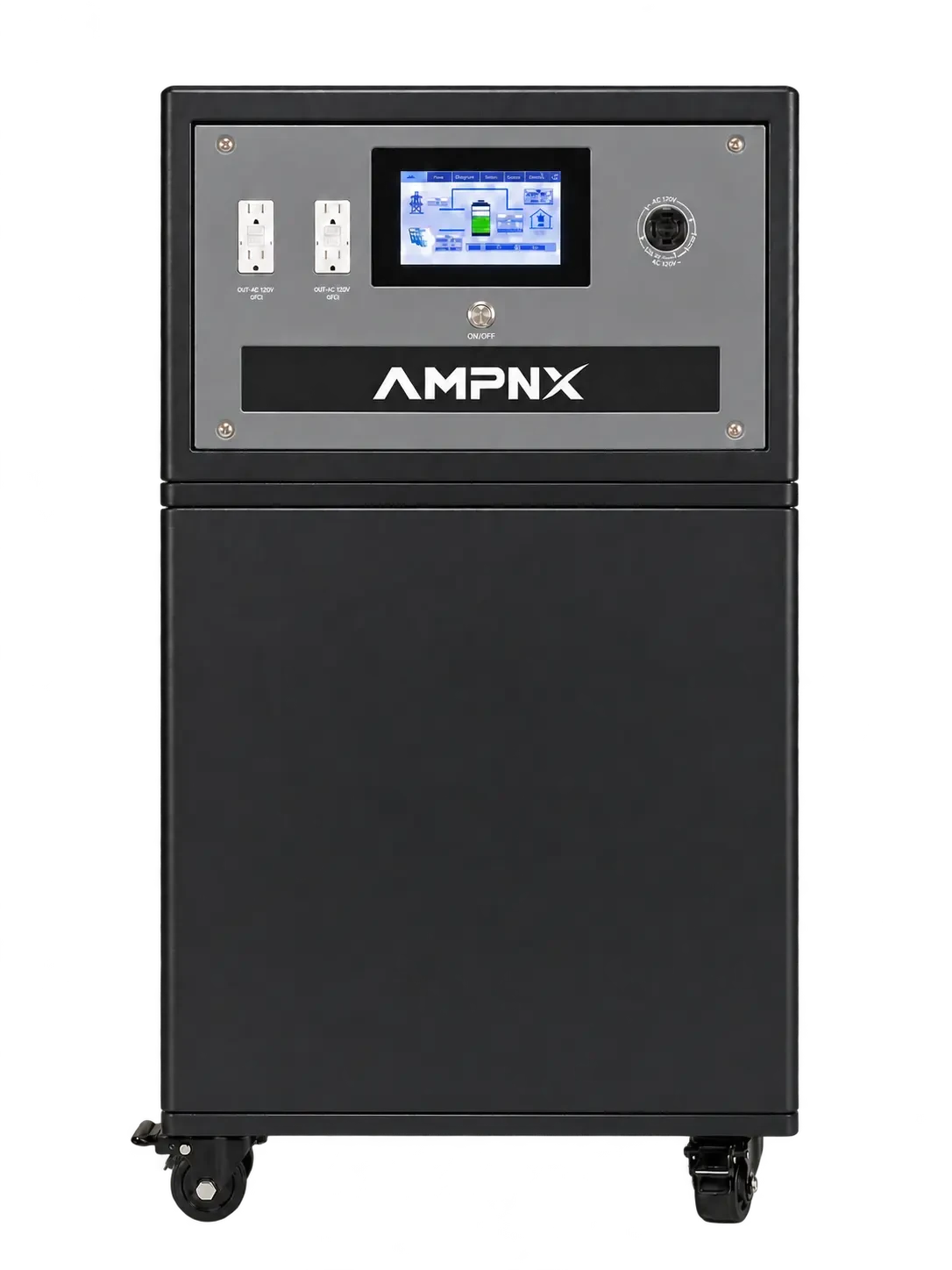

AMPNX TIGER-T4-72
24 kWh All-in-One Energy Storage System
Integrated inverter and 24 kWh LiFePO4 storage in a single enclosure with split-phase output.
- Capacity
- 24 kWh
- Inverter rated power
- 16.5 kVA
- Voltage
- 120/240 V split-phase
Solar lithium batteries & energy storage
Energy storage. Built around your needs.
Match the right storage capacity to a home backup panel, an off-grid site or a multi-unit installer project. Every specification below is published so you can size a system before you quote it.
Electrical connection and installation are carried out by qualified professionals and confirmed per project.
- Capacity
- 24 / 32 kWh
- Chemistry
- LiFePO4
- Elephant battery communication
- CAN / RS485
Verified specifications
Sized on published specifications, not estimates
01
Verified capacity
Rated energy, voltage and weight published per model, with the numbers we can document.
02
Clear chemistry
LiFePO4 and LFP cells across the battery models, with nominal voltage stated per unit.
03
Interface detail
Split-phase output, CAN / RS485 communication and cabinet-level data listed.
04
Selection support
Send your project details and we confirm configuration, pricing and lead time.
Products
Seven products, one selection path
Residential batteries, an all-in-one system, a hybrid inverter, a commercial battery cabinet and a portable power station.
Residential Storage

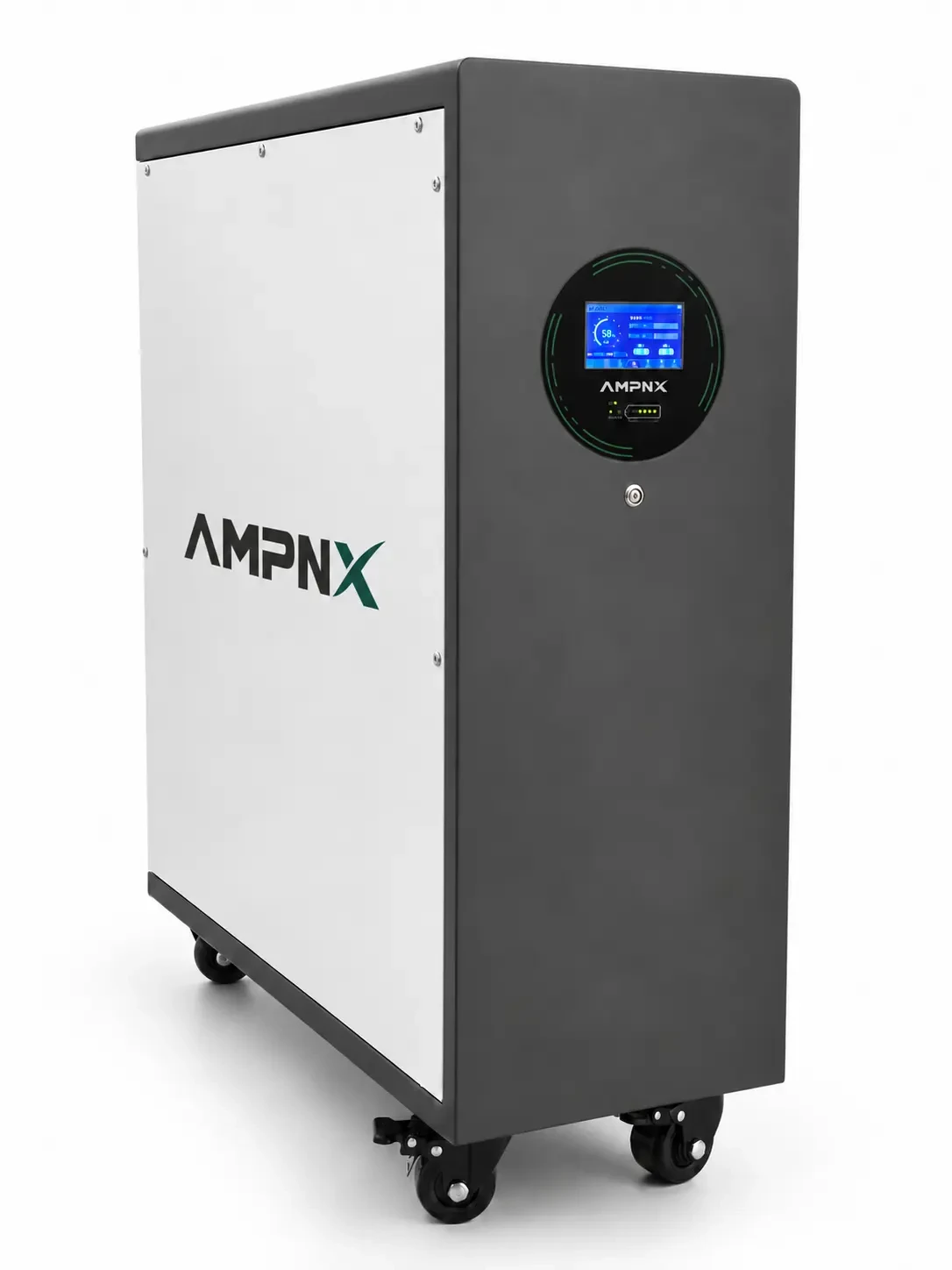

AMPNX Elephant-48628
32 kWh LiFePO4 Battery
Standalone 32 kWh LiFePO4 battery with CAN / RS485 communication for projects that pair storage with an inverter.
- Rated energy
- ≈ 32.15 kWh
- Nominal voltage
- 51.2 V
- Capacity
- 628 Ah
Residential Storage

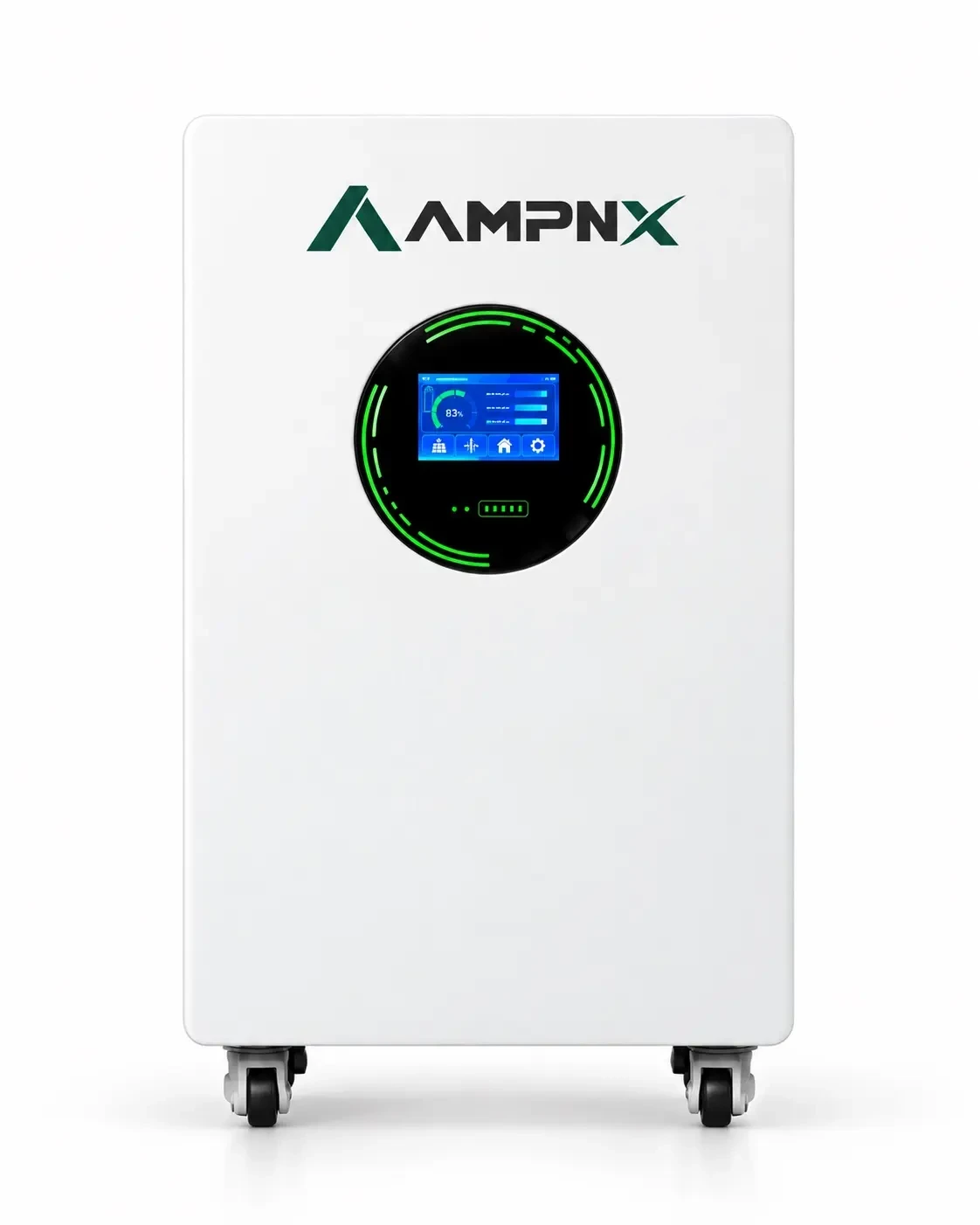

AMPNX FALCON-48G2
16.58 kWh Low-Voltage LFP Battery
Compact vertical low-voltage LFP battery with castors, designed to pair with a protocol-matched external inverter.
- Rated energy
- 16.58 kWh
- Nominal voltage
- 51.2 V
- Cell capacity
- 324 Ah
Commercial Batteries

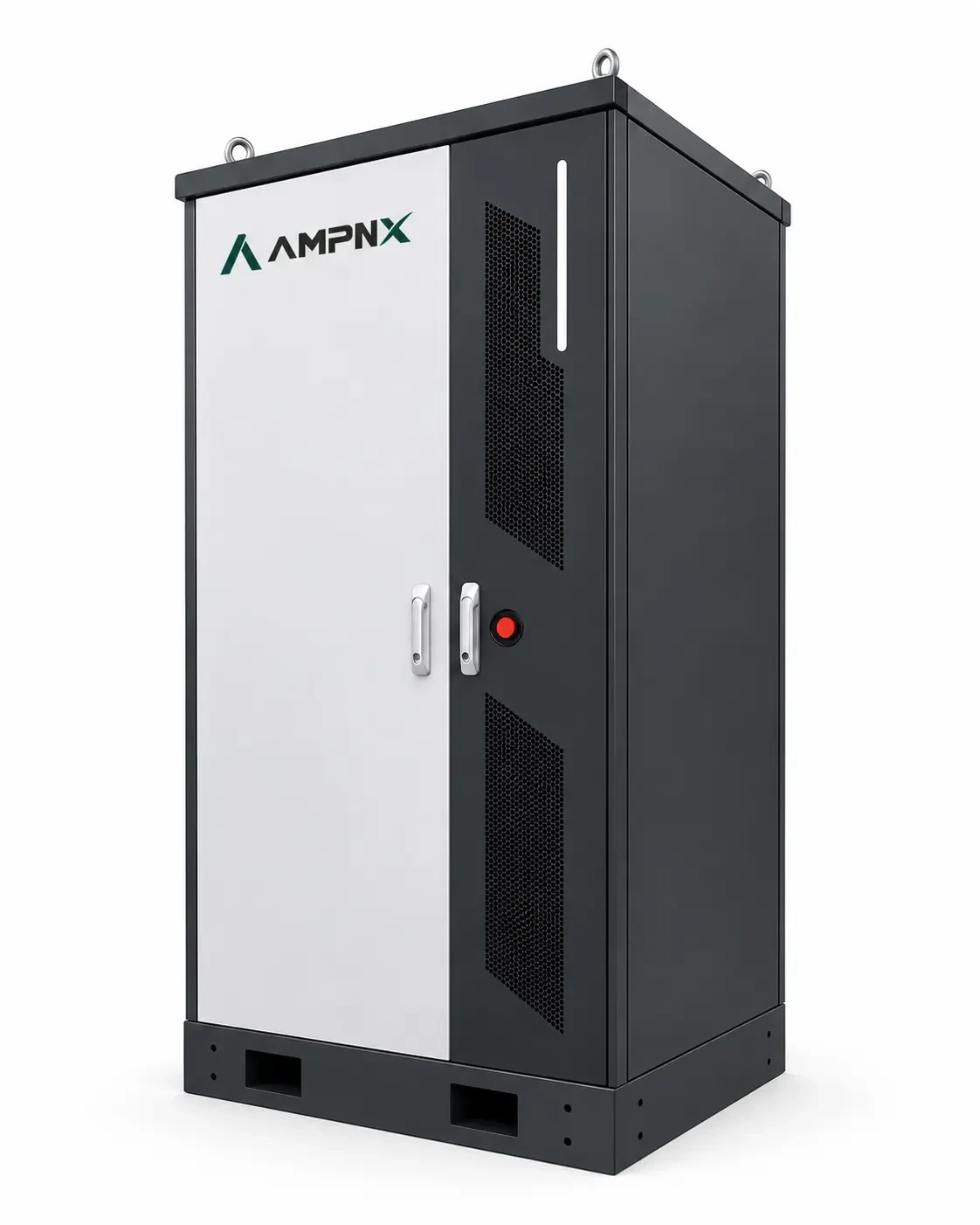

AMPNX LC215 Battery Cabinet
215.04 kWh Liquid-Cooled Battery Cabinet
Liquid-cooled 215.04 kWh LFP battery cabinet for commercial and industrial storage projects.
- Battery energy
- 215.04 kWh
- Rated DC voltage
- 768 Vdc
- Cell capacity
- 280 Ah
Solutions
Built for three project types
Home backup, off-grid sites and installer or commercial projects.
Inside the product
Explore the product design
1 / 2
AMPNX TIGER-T4-72
24 kWh All-in-One Energy Storage System
- Capacity
- 24 kWh
- Inverter rated power
- 16.5 kVA
- Voltage
- 120/240 V split-phase
About
A storage brand that shows its numbers
AMPNX supplies solar lithium batteries and energy storage systems for installers, distributors and homeowners across the United States. We publish capacity, chemistry, voltage and interface data so a system can be verified before it is specified.
Learn moreTell us what you are powering
Share the site, the load and the timeline. We will come back with a configuration and a quote.
